ZW-LH-G3

Wholesale and Partners Only

Overall dimensions 4520x1580x2080mm
Braking distance ≤6m
Rated capacity 8 persons
Range 80km
Climbing grade 15%
Ground clearance 400mm
INQUIRY NOW

CRAFTSMANSHIP 01

THE ZENITH OF SCENIC MOBILITY

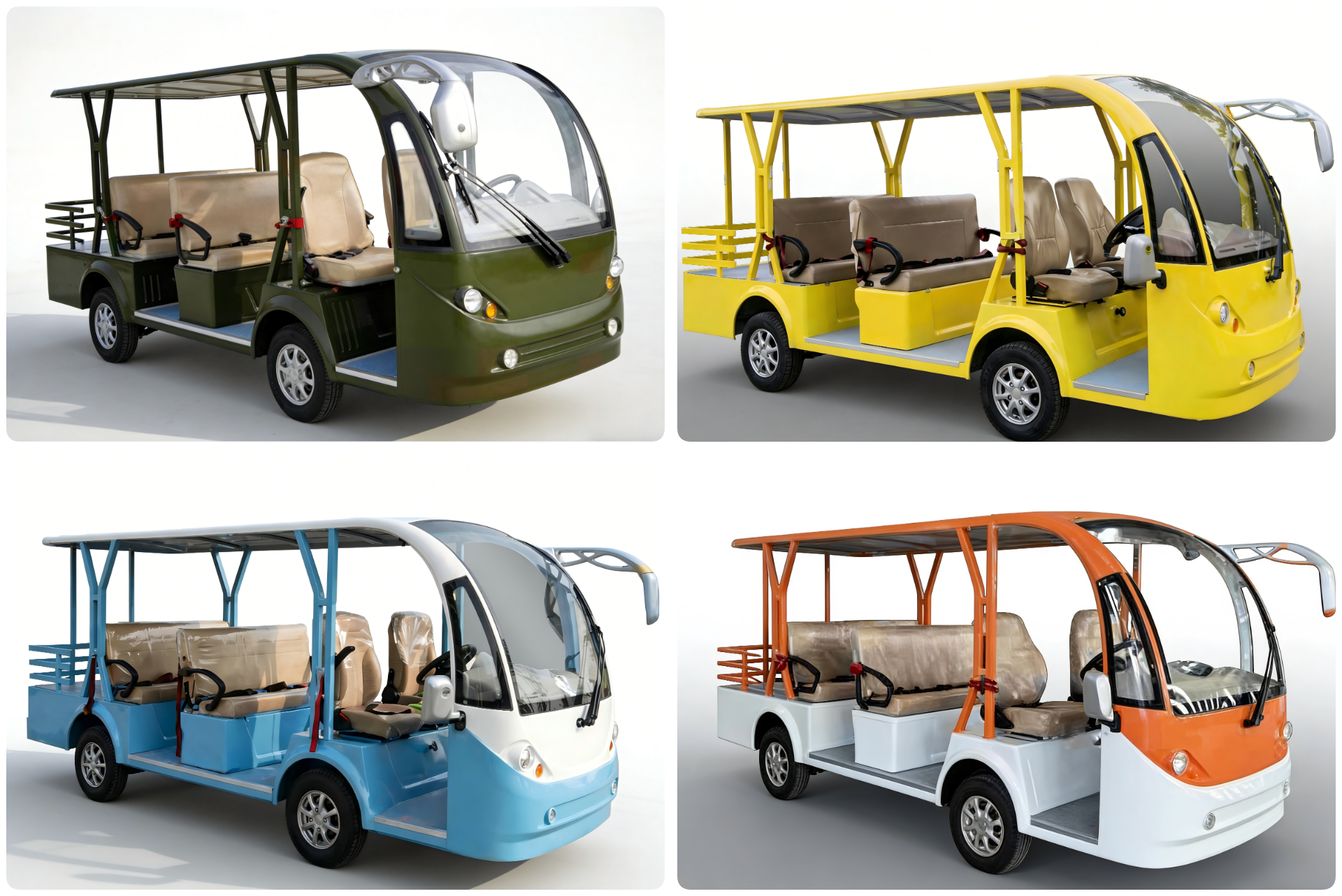

A flagship sightseeing platform featuring an 8-person rated capacity and a massive 1400kg payload redundancy. Engineered with an automotive-grade steel body for visionary safety and uncompromised structural integrity.

CRAFTSMANSHIP 02

PRECISION DYNAMICS & COMMAND INTERFACE

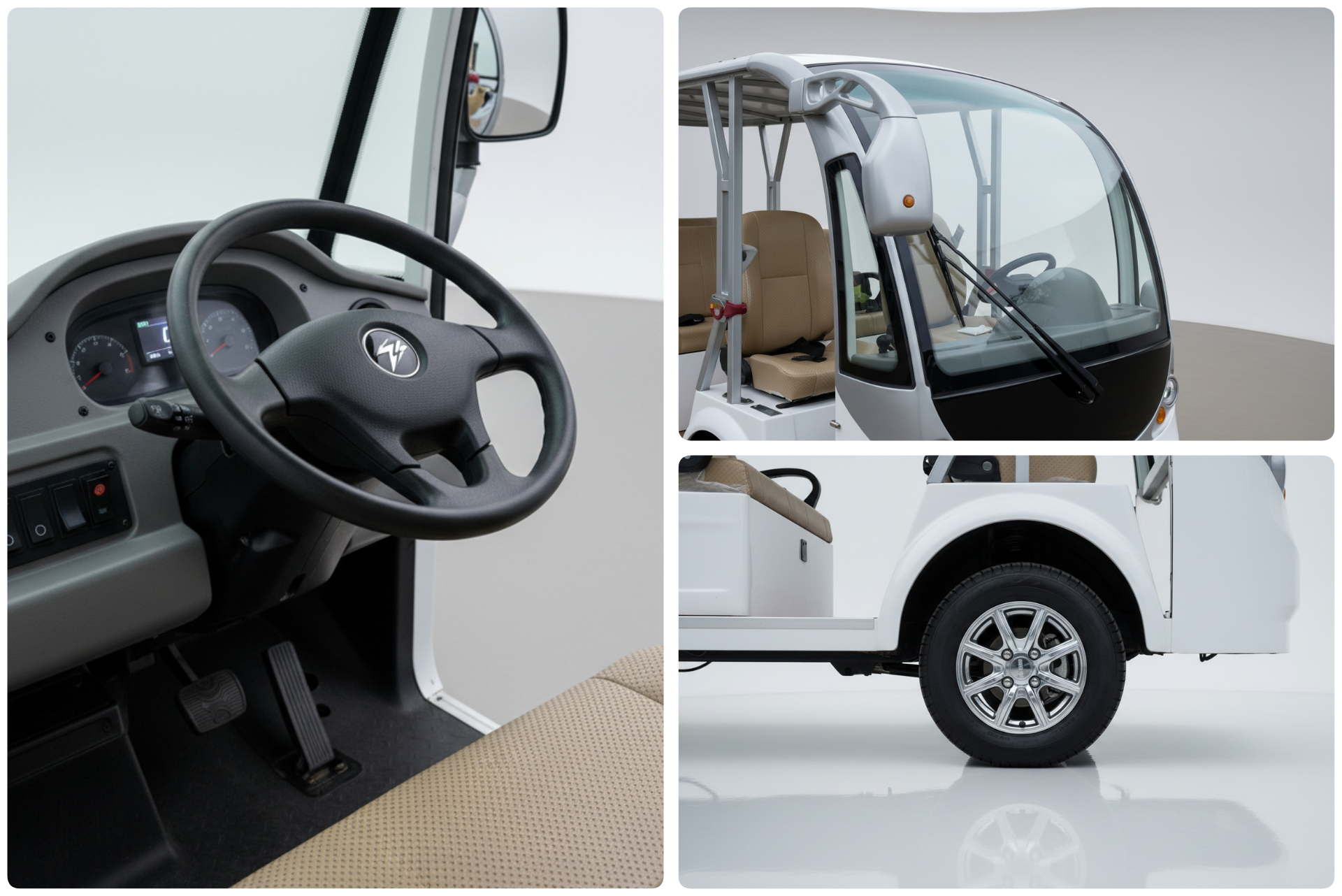

Integrating an automotive-grade rack and pinion steering gear with high-response independent suspension. Featuring 12-inch aluminum alloy rims to deliver millisecond-precision control and a high-comfort driving experience.

CRAFTSMANSHIP 03

CRAFTSMANSHIP 03

CRAFTSMANSHIP 03
Configuration
Parameters Details
Overall dimensions 4520x1580x2080mm
Braking distance ≤6m
Rated capacity 8 persons
Range 80km
Climbing grade 15%
Ground clearance 400mm
Turning radius 6.75M
Front axle and suspension Independent suspension
Vehicle load capacity 1400Kg
Frame material Steel frame
Driving speed 30km/h
Rear axle specifications Integrated rear axle
Wheelbase 2220mm
Body material Automotive steel
Front and rear track 1350/1370mm
Power transmission Infinitely Variable Transmission system
Curb weight (Convertible/Closed) 900kg/1060kg
Tire specifications 155R12 tubeless tire
Motor power 4000W (Optional)
Steering system Rack and pinion steering gear
Battery specifications 72V*100Ah (Optional)
Rim specifications 12×4.5 aluminum alloy rim
