ODF-ZZW

Wholesale and Partners Only

Dimensions 215 × 65 × 102 cm
Motor Specifications Quanshun 10-inch 27H 1000W Motor
Max Speed 55 km/h
Battery Configuration Base vehicle price excluding battery (range depends on selected battery capacity)
Controller 30 A
Frame Material High Carbon Steel
INQUIRY NOW

CRAFTSMANSHIP 01

HEAVY-DUTY REDUNDANT PERFORMANCE PLATFORM

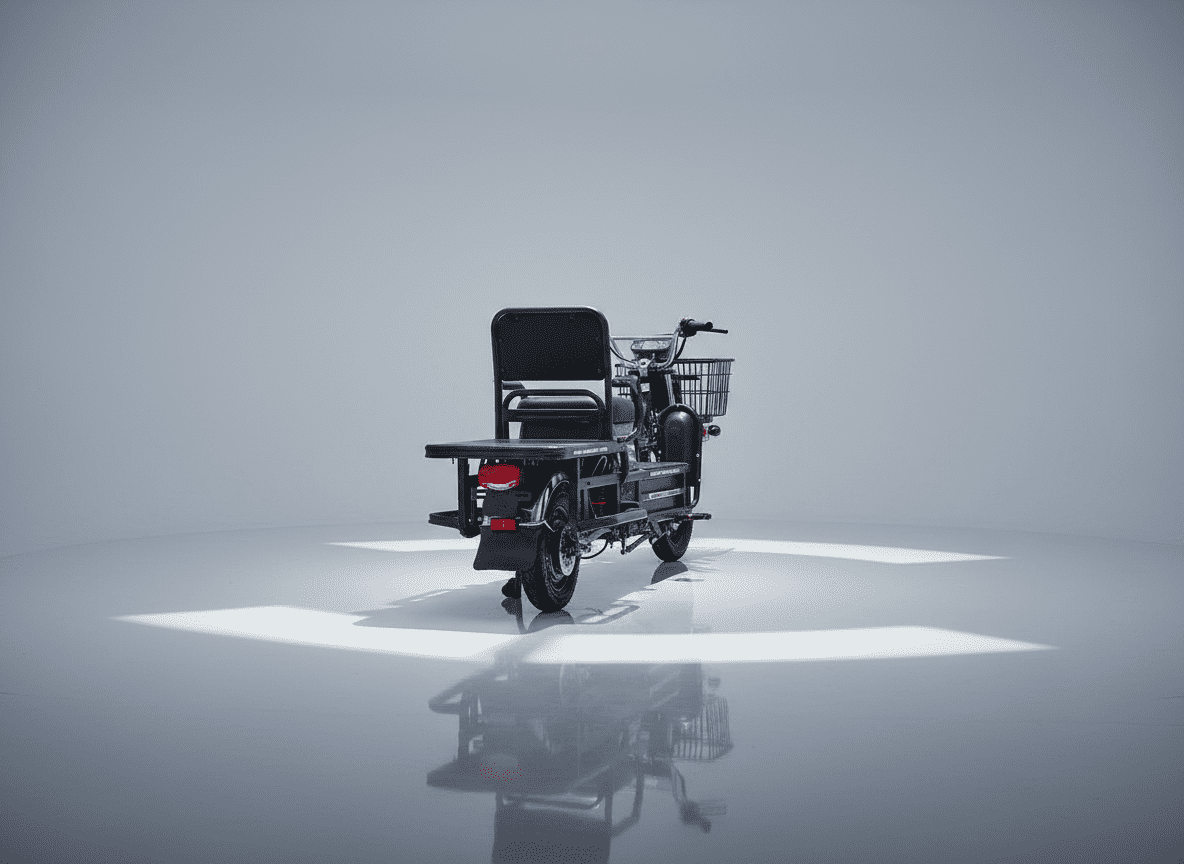

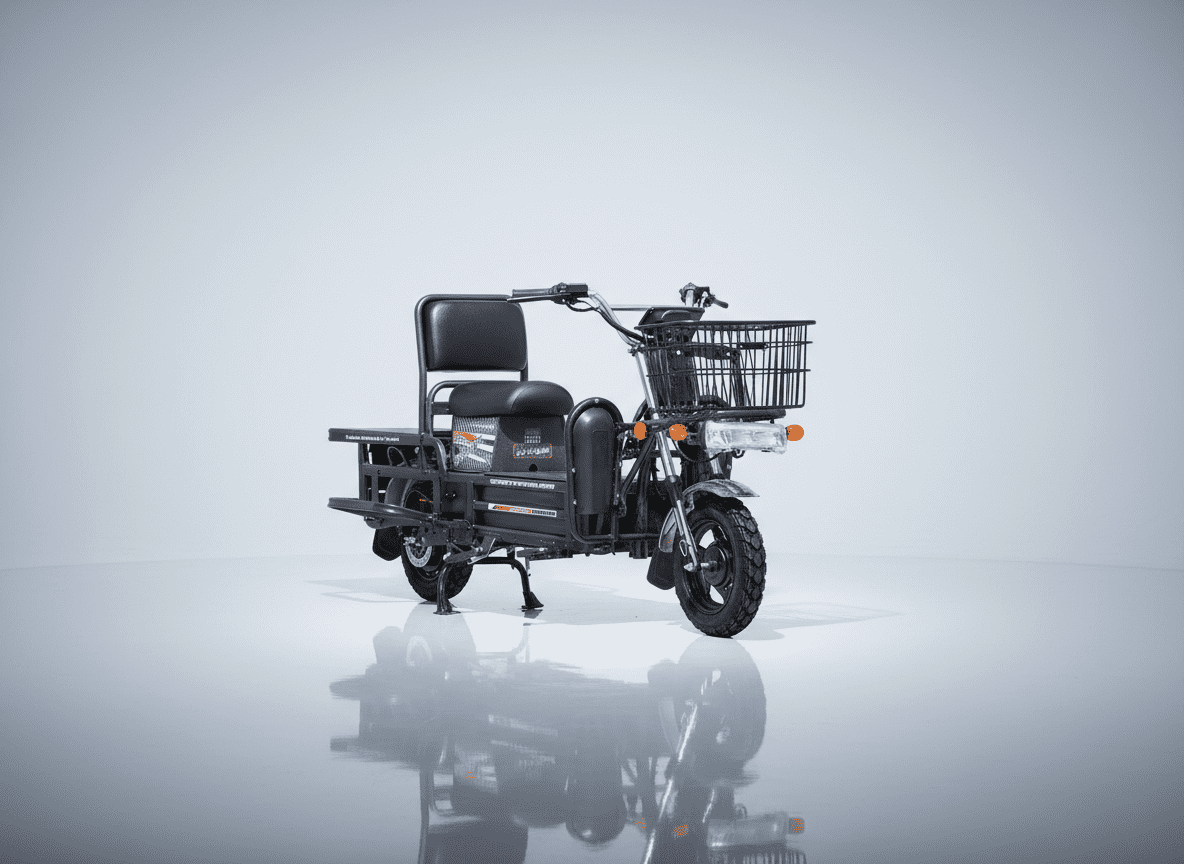

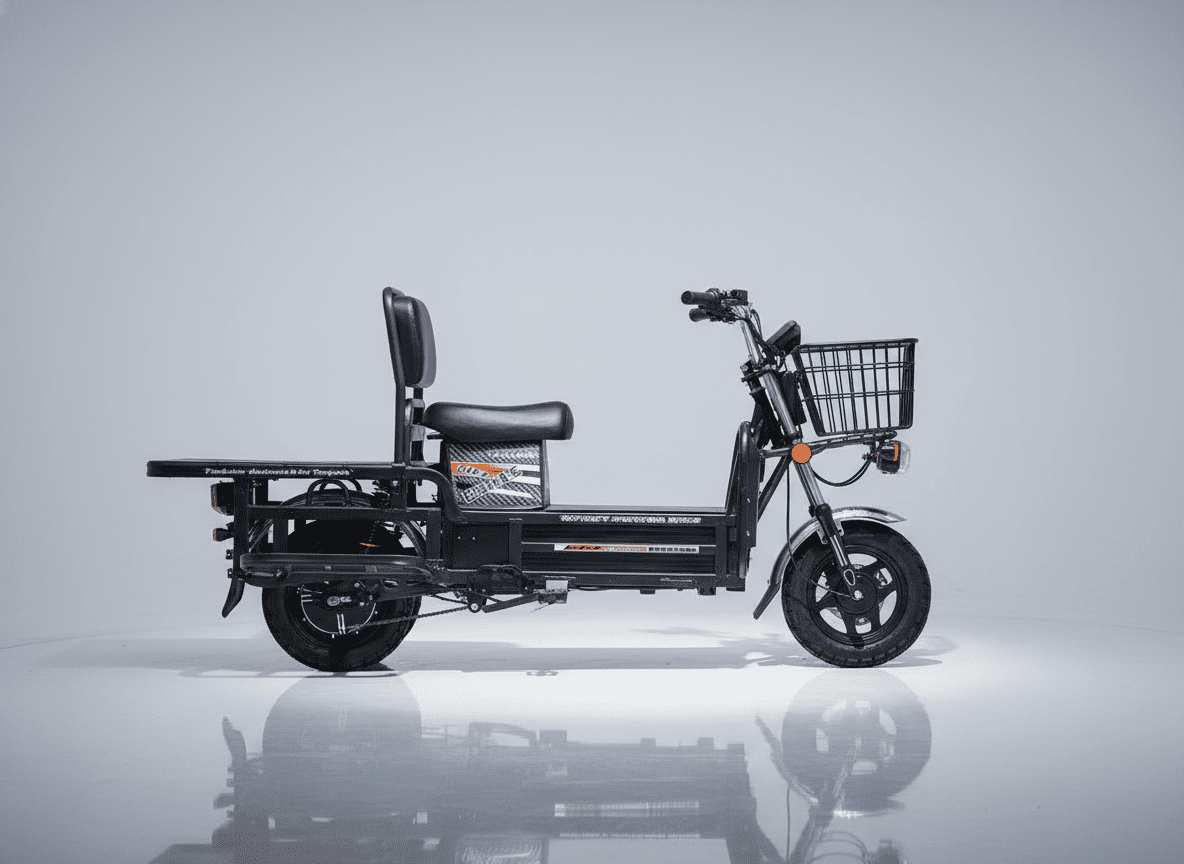

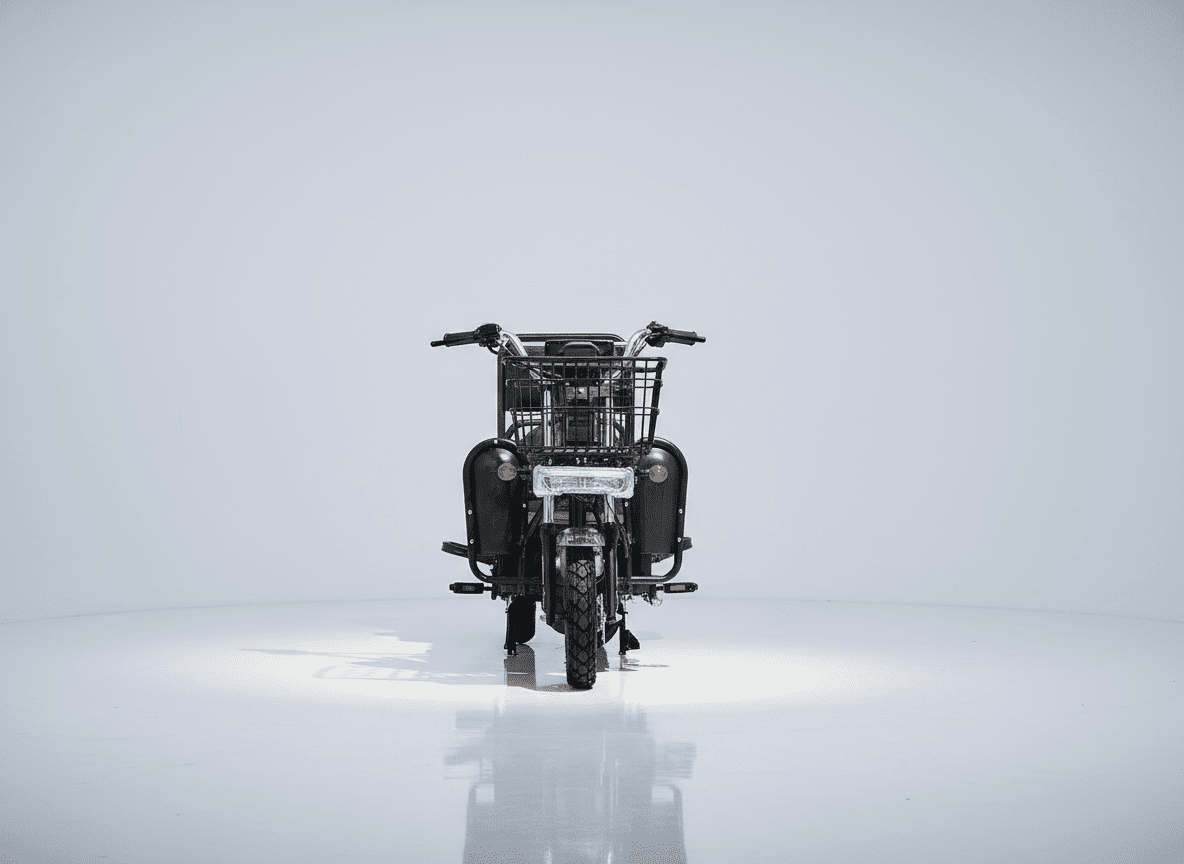

A flagship urban mobility unit built upon a high-carbon steel chassis, integrating a 1000W Quanshun motor to support a massive 500kg payload capacity at a 55km/h peak velocity.

CRAFTSMANSHIP 02

PRECISION DYNAMIC CONTROL INTERFACE

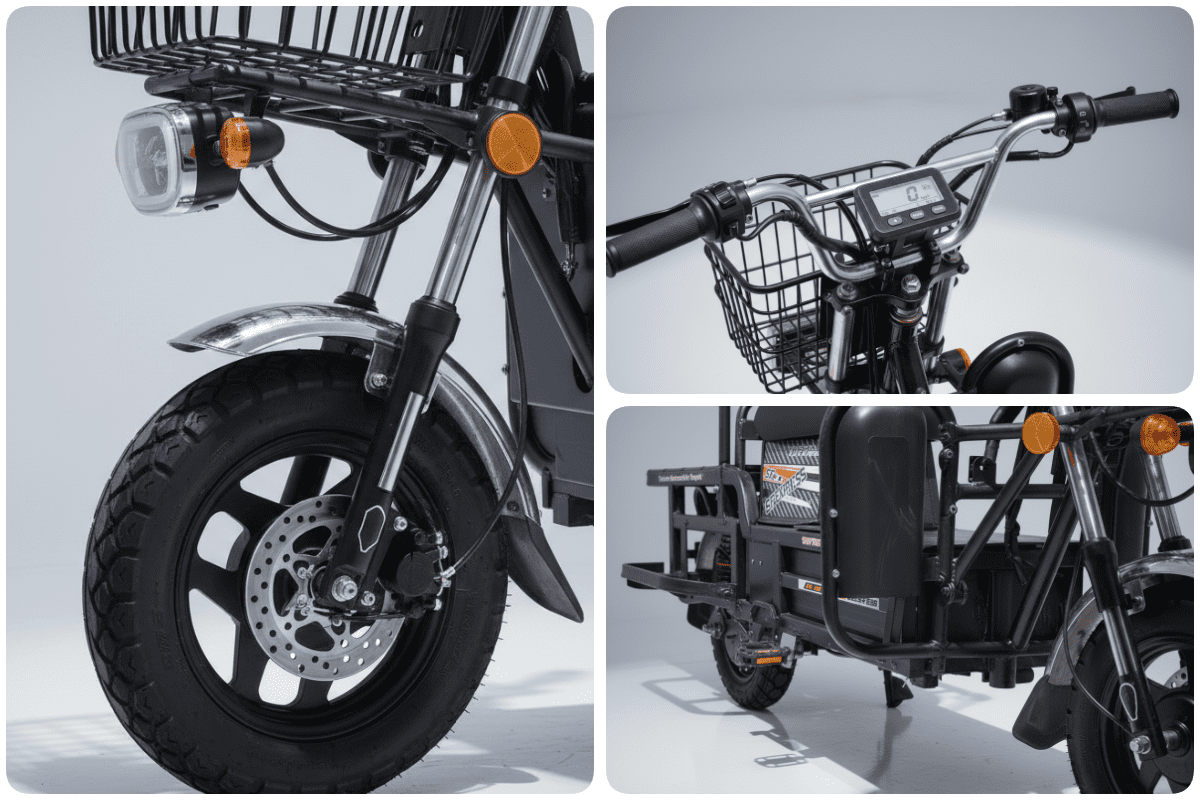

Dual hydraulic braking matrix paired with advanced 30-tube rear shock absorbers. Featuring a high-definition digital interface and ergonomic cold foam seating for an intuitive, high-comfort control experience.

CRAFTSMANSHIP 03

HIGH-FIDELITY ELECTROCHEMICAL ENERGY CORE

A sophisticated multi-layered electrode matrix engineered for superior charge retention and thermal management. Delivering a high-density power reservoir optimized for consistent energy delivery across varied operational cycles.
Configuration
Parameters Details
Dimensions 215 × 65 × 102 cm
Motor Specifications Quanshun 10-inch 27H 1000W Motor
Max Speed 55 km/h
Battery Configuration Base vehicle price excluding battery (range depends on selected battery capacity)
Controller 30 A
Frame Material High Carbon Steel
Tire Specifications Front / Rear 3.00-10
Braking System Front and Rear Dual Disc Brakes
Front Shock Absorption Hydraulic Damping Shock Absorber
Rear Shock Absorption Dual 30-tube Hydraulic Shock Absorbers
Lighting System LED Headlight
Handlebar Functions 3-speed Adjustment, Reverse Function, P Gear (Parking Gear)
Seat Cushion Configuration High-elastic Cold Foam Comfortable Cushion
Other Configurations Front Crash Bar, Cargo Basket
Maximum Load Capacity 500 kg
