ODF-XF-1

Wholesale and Partners Only

Dimensions 205 × 63 × 105 cm
Motor Specifications Quanshun 17-inch 3000 W motor (high performance, high power)
Max Speed 80 km/h
Battery Configuration No battery (bare vehicle price, range depends on the selected battery capacity)
Controller Yuanqu 100 A controller
Front tire specifications 110-70-17
INQUIRY NOW

CRAFTSMANSHIP 01

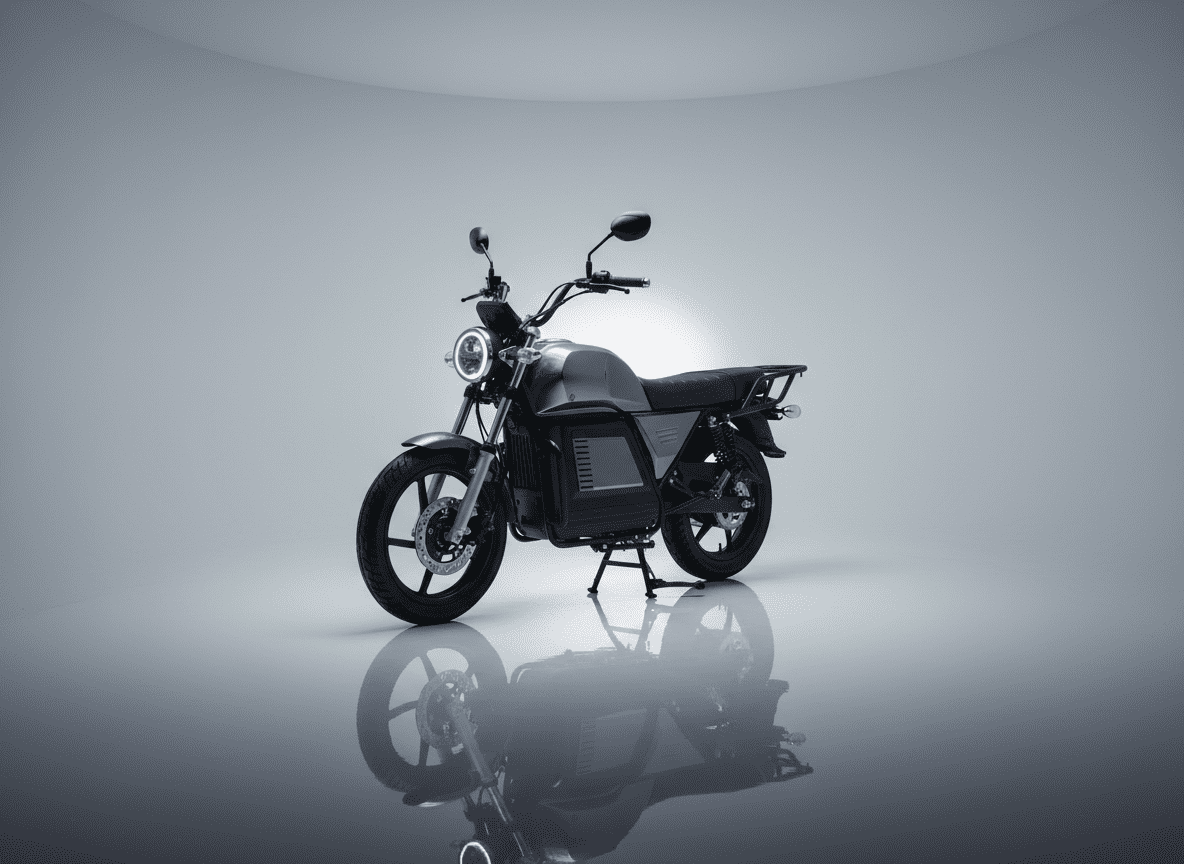

FLAGSHIP PERFORMANCE MOBILITY PLATFORM

Redefining urban transport with a massive 600kg payload redundancy and a high-carbon steel chassis. This architecture balances raw industrial power with refined aesthetics to dominate diverse operational landscapes.

CRAFTSMANSHIP 02

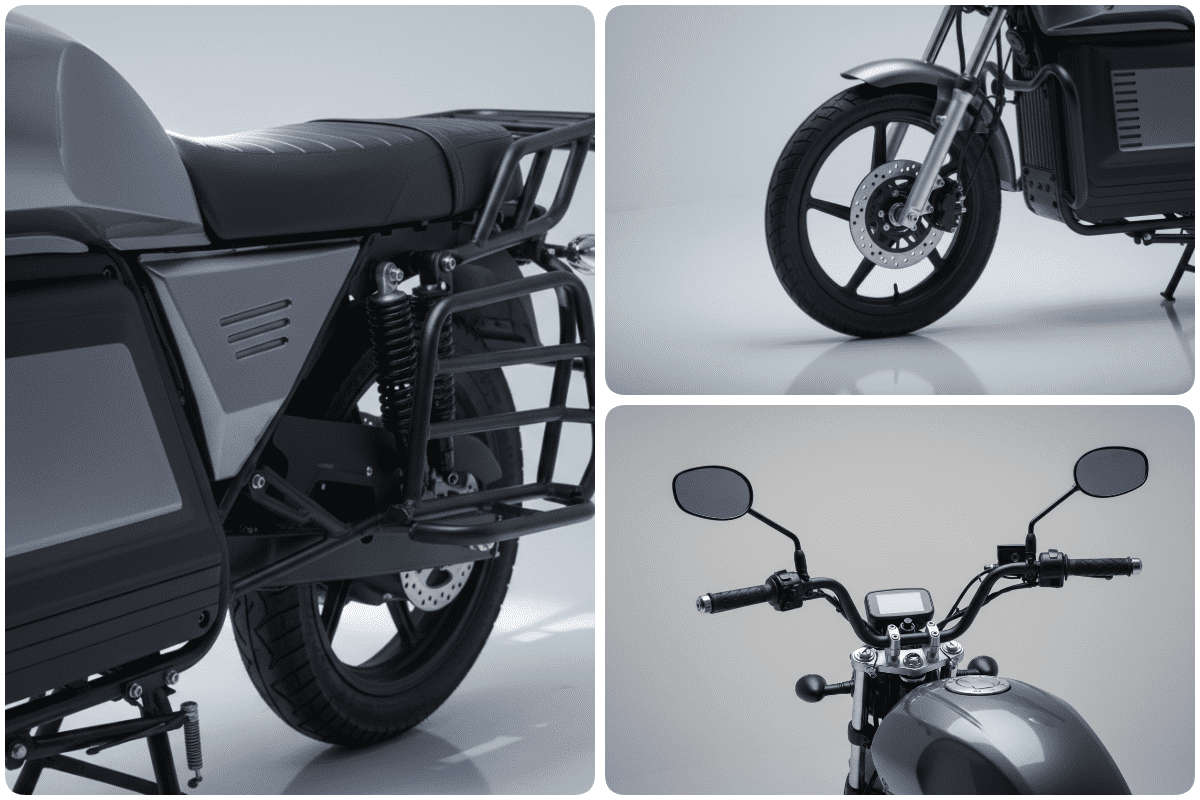

PRECISION COMMAND & BRAKING MATRIX

Integrating a 100A high-current controller with dual hydraulic disc brakes and specialized shock absorption. Delivering millisecond-precision feedback and rock-solid stability under the most rigorous dynamics.

CRAFTSMANSHIP 03

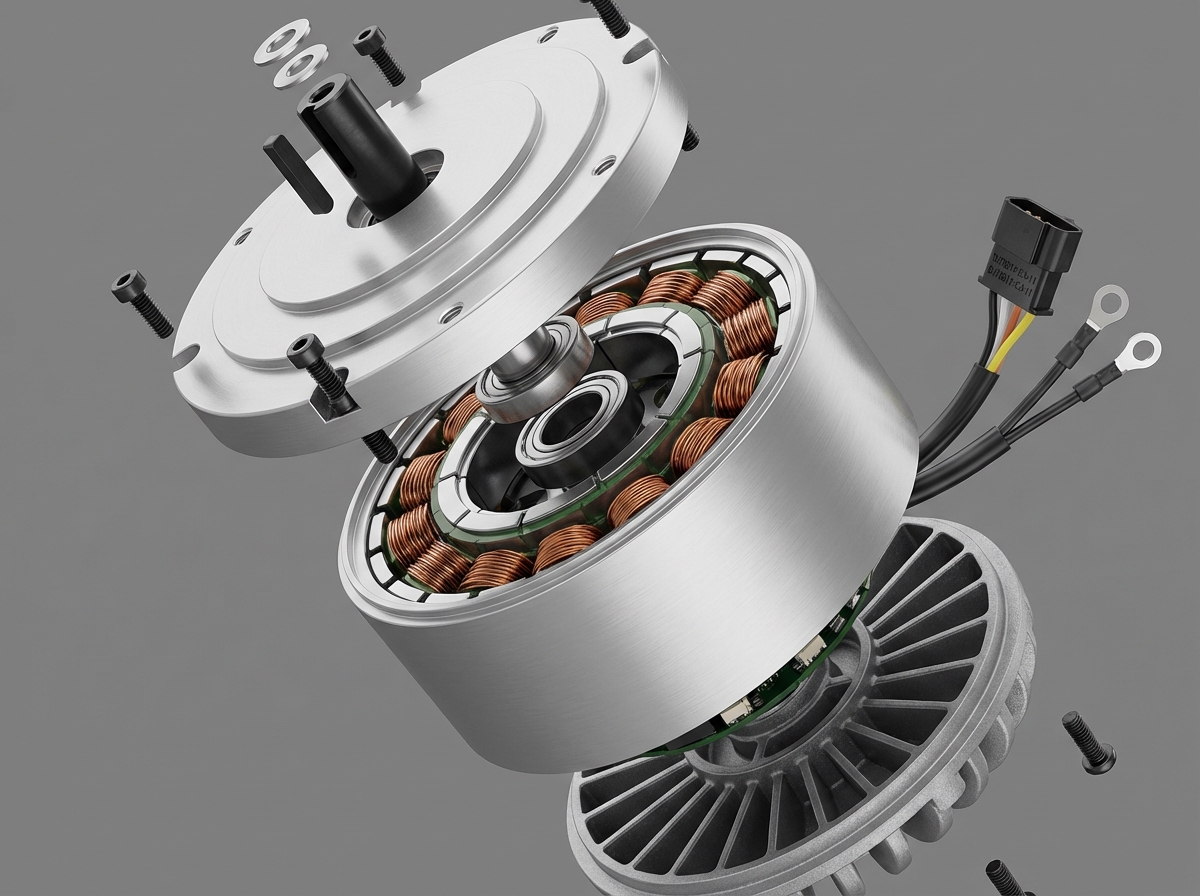

HIGH-OUTPUT PROPULSION CORE

A flagship 3000W high-fidelity motor architecture engineered for peak energy conversion. Optimized with advanced magnetic flux density for instantaneous torque delivery and a consistent 80km/h peak velocity.
Configuration
Parameters Details
Dimensions 205 × 63 × 105 cm
Motor Specifications Quanshun 17-inch 3000 W motor (high performance, high power)
Max Speed 80 km/h
Battery Configuration No battery (bare vehicle price, range depends on the selected battery capacity)
Controller Yuanqu 100 A controller
Front tire specifications 110-70-17
Rear tire specifications 140-70-17
Frame Material High Carbon Steel
Lighting System LED Headlight
Front Shock Absorption Hydraulic Damping Shock Absorber
Rear Shock Absorption Dual 30-tube Hydraulic Shock Absorbers
Braking System Front and Rear Dual Disc Brakes
Handlebar Functions 3-speed Adjustment, Reverse Function, P Gear (Parking Gear)
Seat Cushion Configuration High-elastic Cold Foam Comfortable Cushion
Maximum Load Capacity 600 kg
