ODF-CH-1

Wholesale and Partners Only

Dimensions 185 * 58 * 102 cm
Motor Specifications 1000 W Quanshun Motor
Max Speed 50 km/h
Battery Configuration No battery (bare vehicle price, range depends on the selected battery capacity)
Controller 30 A Controller
Tire Specifications Front / Rear 3.00-10
INQUIRY NOW

CRAFTSMANSHIP 01

ERGONOMIC UTILITY ARCHITECTURE

High-carbon steel framework integrated with a high-elasticity cold-foam seat matrix and a heavy-duty cargo rack. Engineered for long-term operational comfort and extreme payload redundancy.

CRAFTSMANSHIP 02

URBAN LOGISTICS PROPULSION SYSTEM

A flagship mobility platform powered by a high-fidelity 1000W Quanshun motor. Achieving a precise balance between 50km/h peak velocity and a massive 500kg heavy-duty load capacity for professional distribution.

CRAFTSMANSHIP 03

PRECISION KINETIC BRAKING MATRIX

Integrating dual-disc braking technology with high-response hydraulic damping absorbers. Delivering millisecond-precision feedback and rock-solid stability under maximum load dynamics.
Configuration
Parameters Details
Dimensions 185 * 58 * 102 cm
Motor Specifications 1000 W Quanshun Motor
Max Speed 50 km/h
Battery Configuration No battery (bare vehicle price, range depends on the selected battery capacity)
Controller 30 A Controller
Tire Specifications Front / Rear 3.00-10
Frame Material High Carbon Steel
Lighting System LED Headlight

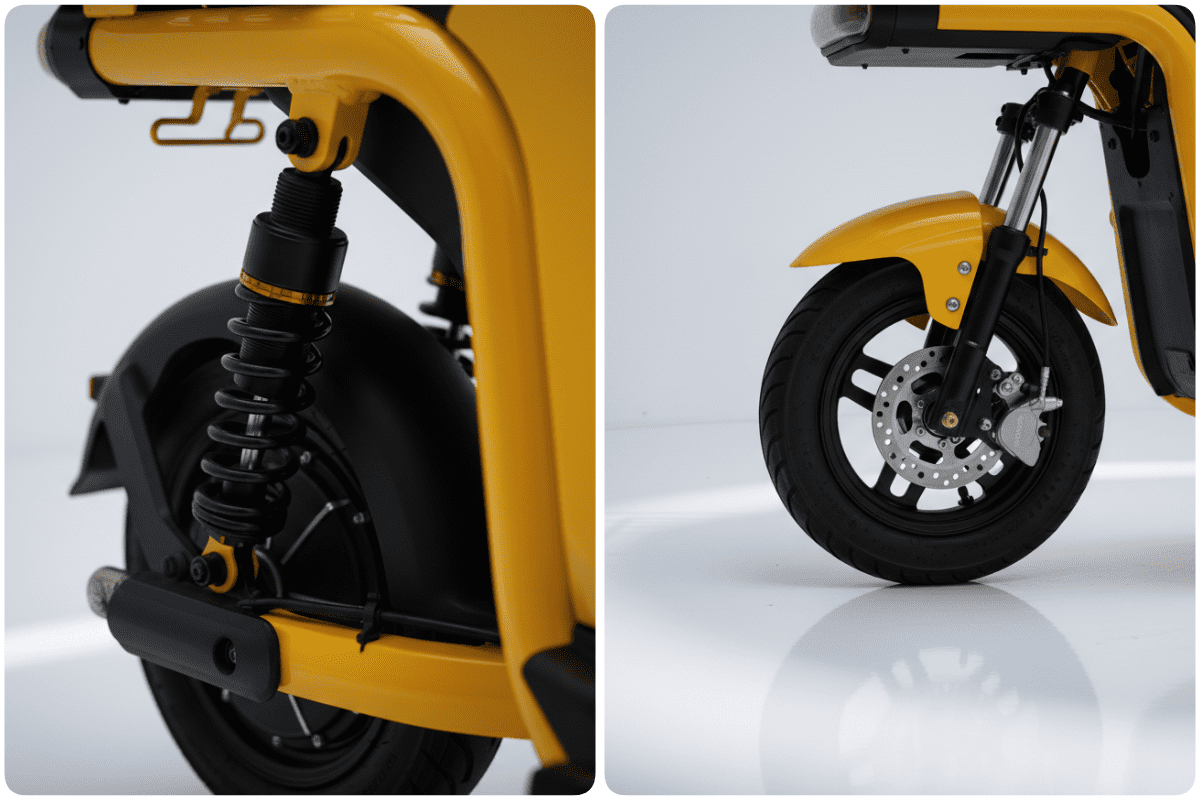

Front Shock Absorption Hydraulic Damping Shock Absorber
Rear Shock Absorption Hydraulic Spring Shock Absorber
Braking System Front and Rear Dual Disc Brakes
Handlebar Functions Three-speed adjustment, reverse function

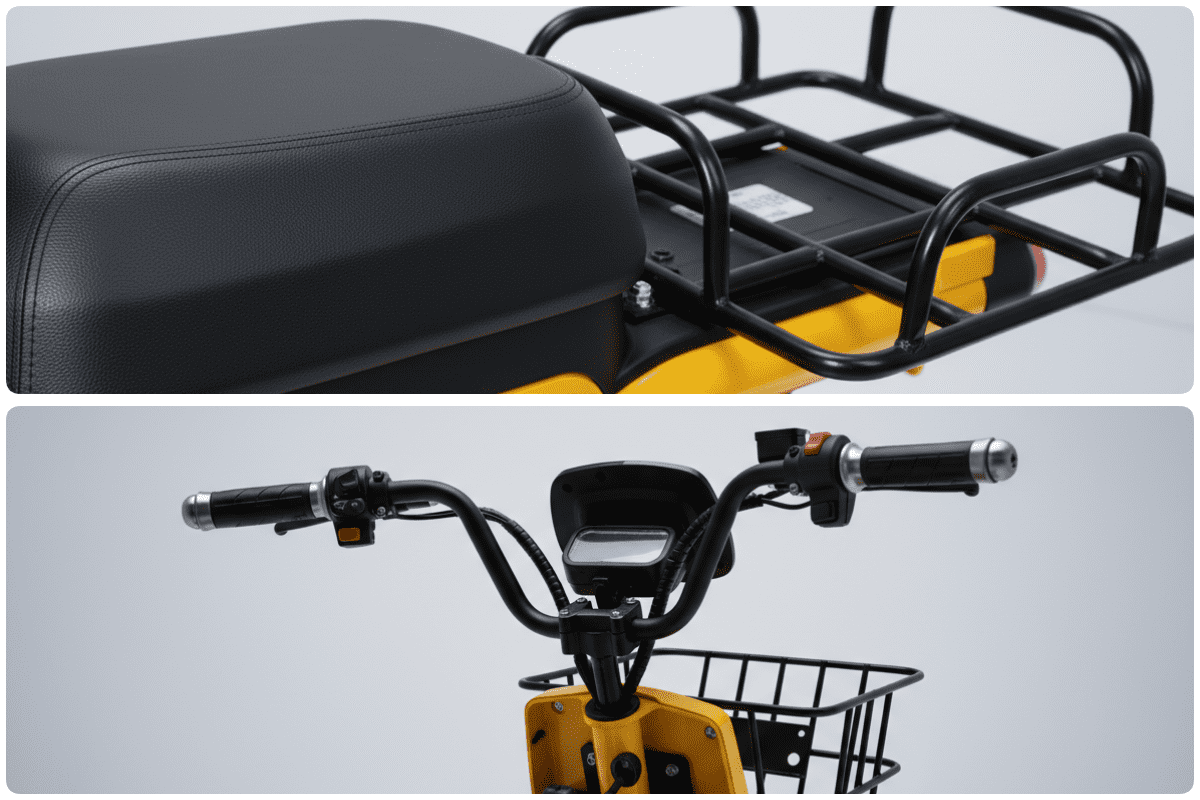

Seat Cushion Configuration High-elasticity comfortable cold-foam seat cushion
Cargo Configuration Front basket (65 × 40 cm) + Rear delivery box
Maximum Load Capacity 500 kg
