JT-TUK-TUK-A6

Wholesale and Partners Only

Overall dimensions (mm) 2980 × 1110 × 1780
Wheelbase (mm) 2000
Track width (mm) 990
Ground clearance (mm) 160
Maximum speed 50–60 km/h
Minimum turning radius (m) 4
INQUIRY NOW

CRAFTSMANSHIP 01

URBAN UTILITY MOBILITY PLATFORM

A sophisticated passenger transport solution featuring a versatile 3-row seating configuration and a robust 800kg payload capacity, meticulously engineered for high-efficiency urban transit.

CRAFTSMANSHIP 02

PRECISION CHASSIS DYNAMICS & SAFETY

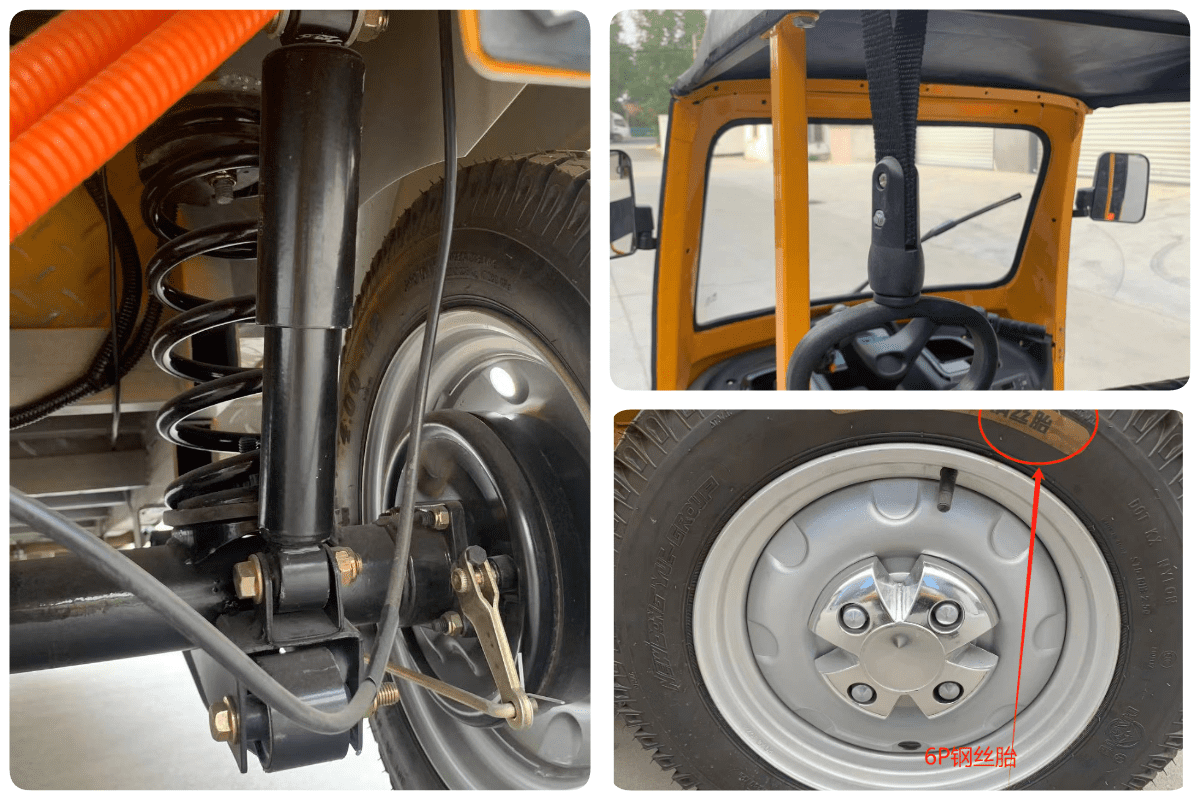

High-fidelity suspension matrix featuring a 160mm ground clearance and a linked 3-brake system, paired with industrial-grade 6P steel wire tires for unparalleled stability and control.

CRAFTSMANSHIP 03

HIGH-PERFORMANCE PROPULSION ARCHITECTURE

Advanced drive unit optimized for a 60km/h peak velocity. Featuring intelligent thermal management and high-torque efficiency to support a visionary 150km operational range.
Configuration
Parameters Details
Overall dimensions (mm) 2980 × 1110 × 1780
Wheelbase (mm) 2000
Track width (mm) 990
Ground clearance (mm) 160
Maximum speed 50–60 km/h
Minimum turning radius (m) 4
Braking method Front 130 / Rear 180 drum brake, one-foot three-linkage braking
Braking distance (m) 8–10
Maximum load (kg) ≤ 800
Curb weight (kg) 330
Number of rows 3
Number of occupants 1 + 5
Charging time (h) 5–10 (Optional)
Range 100–150 km (Optional)
