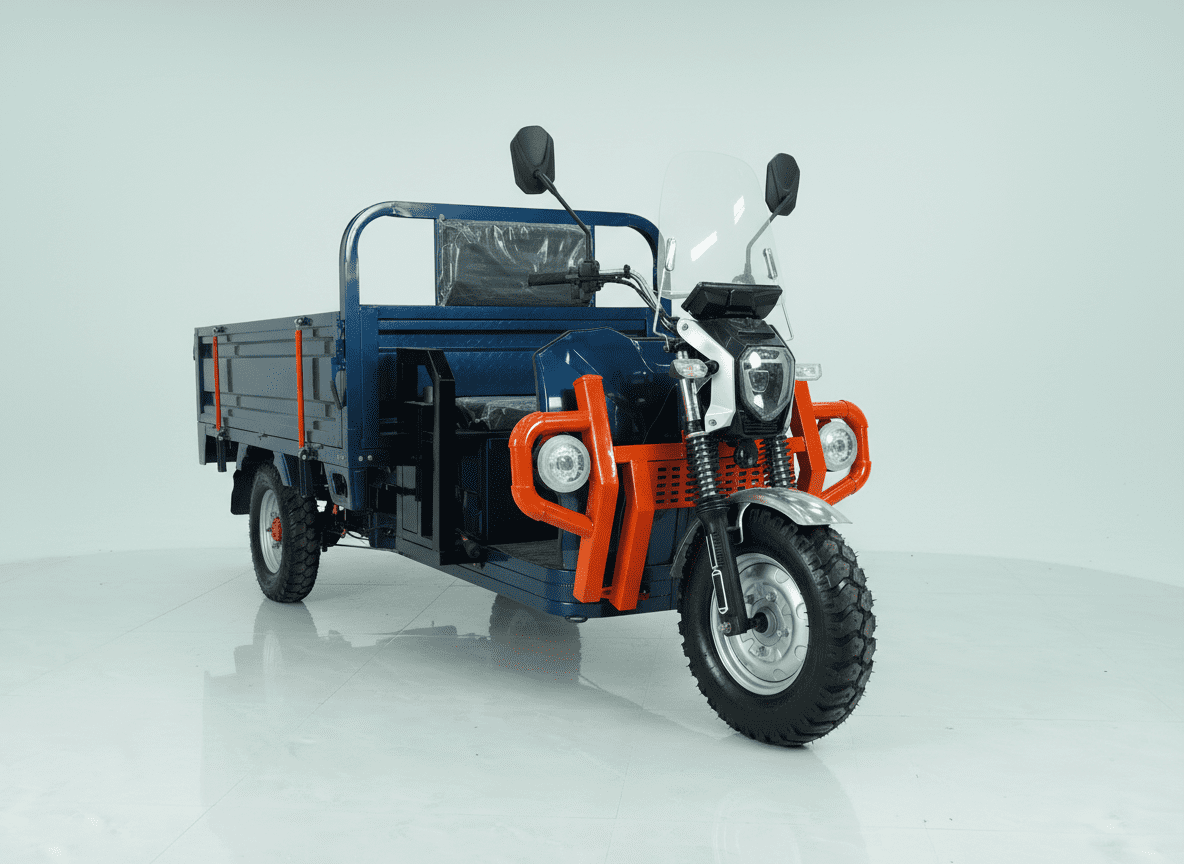

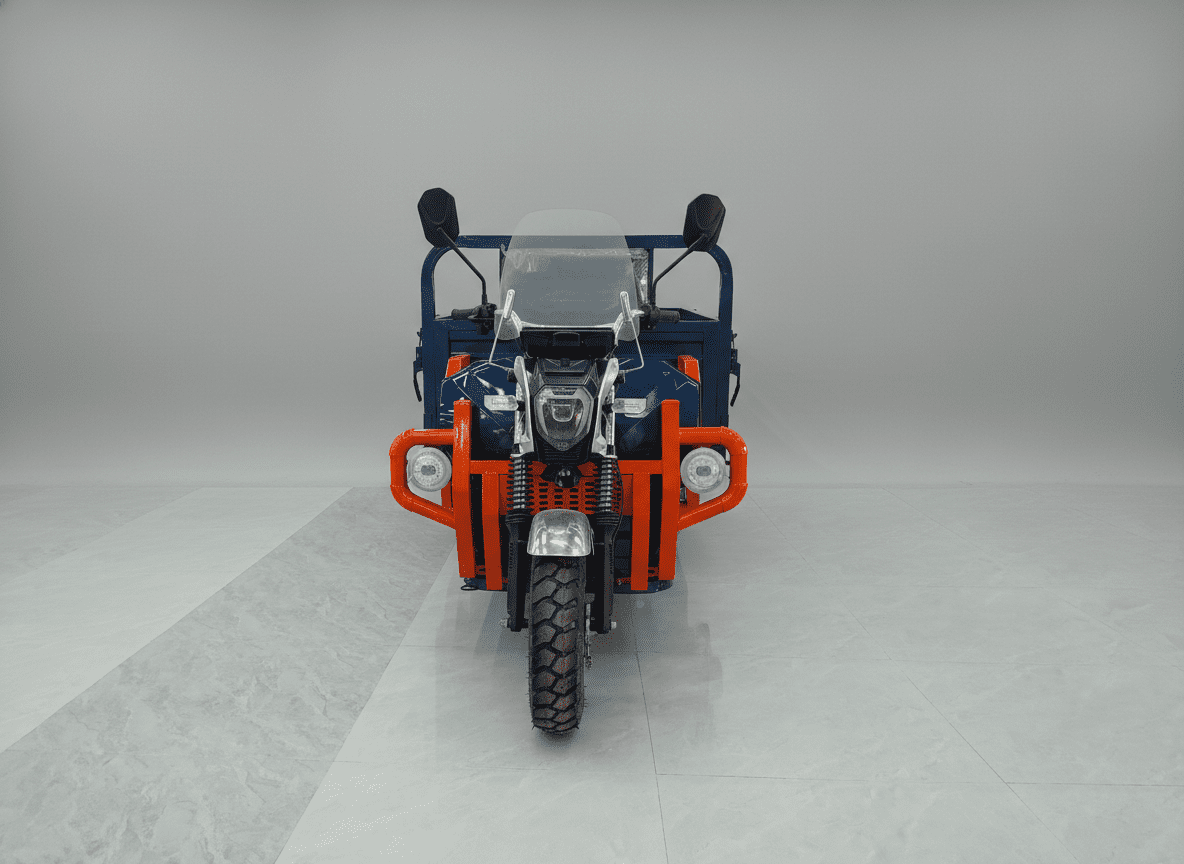

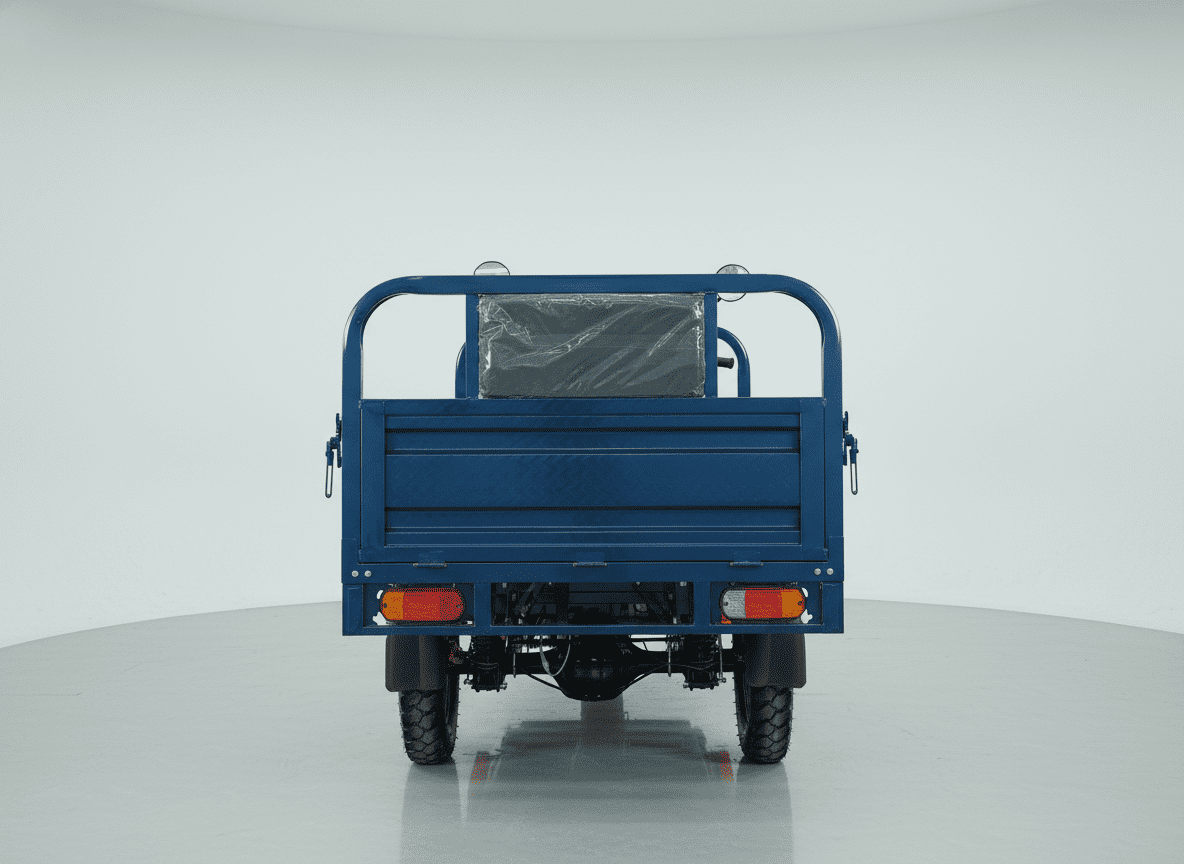

JT-SLZH

Wholesale and Partners Only

Length × Width × Height (mm) 3250 × 1380 × 1430
Wheelbase (mm) 2060
Track width (mm) 1160
Motor 72V 1000W 50H Permanent Magnet Synchronous Motor
Controller 72V 1000W 50A Permanent Magnet Synchronous Controller, 18-tube large double-row
Rear axle Integrated 180 full-floating gear-shifting axle
INQUIRY NOW

CRAFTSMANSHIP 01

HEAVY-DUTY CARGO UTILITY PLATFORM

Engineered with a massive 1-ton payload capacity and a reinforced four-beam chassis architecture. This heavy-duty platform redefines industrial transport efficiency through superior structural integrity and load redundancy.

CRAFTSMANSHIP 02

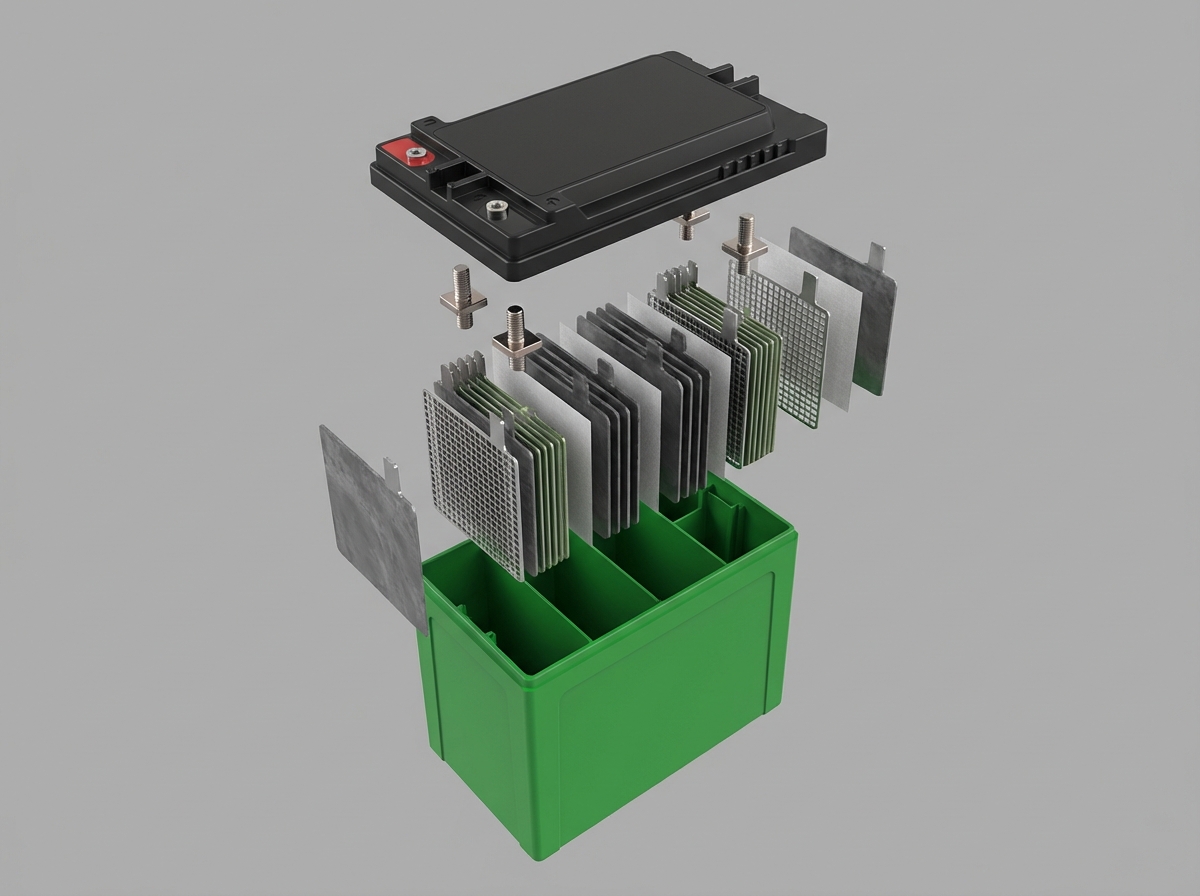

HIGH-FIDELITY ENERGY STORAGE UNIT

Powered by a high-density 72V 58Ah Chilwee energy matrix, delivering a consistent 80km operational range. Precision-engineered for high-frequency discharge cycles with exceptional chemical stability.

CRAFTSMANSHIP 03

PRECISION DYNAMIC CONTROL SYSTEM

Integrating a 1000W permanent magnet synchronous motor with a 18-tube large dual-row controller. Featuring a dual-damping suspension matrix for unparalleled stability under extreme load conditions.
Configuration
Parameters Details
Length × Width × Height (mm) 3250 × 1380 × 1430
Wheelbase (mm) 2060
Track width (mm) 1160
Motor 72V 1000W 50H Permanent Magnet Synchronous Motor
Controller 72V 1000W 50A Permanent Magnet Synchronous Controller, 18-tube large double-row
Rear axle Integrated 180 full-floating gear-shifting axle
Braking Front 130 hand brake, rear 180 drum foot brake
Parking Hand brake, P-gear parking
Shock absorption Front 43 external spring reinforced Longbao shock absorber, widened 240 chain plate; Rear 18 kg leaf spring shock absorber, double damping
Tire Front 5.00-12, rear 5.00-12 mountain 6P steel wire tires, three-wheel interchangeable
Headlight New wolf-head headlight, LED tail light
Instrument LCD instrument, with front windshield
Frame Four-beam frame, 5×7 frame main beam 3.0, side beam 2.5, steel plate bottom 4 beams; heightened 50 steel plate door core, external armrests, damping, foam backrest, double side lights, side doors with slides, swing opening
Range 72V 58Ah Chilwee battery, range approx. 80 km
Maximum Load Capacity 1 ton
Maximum speed 35 km/h
