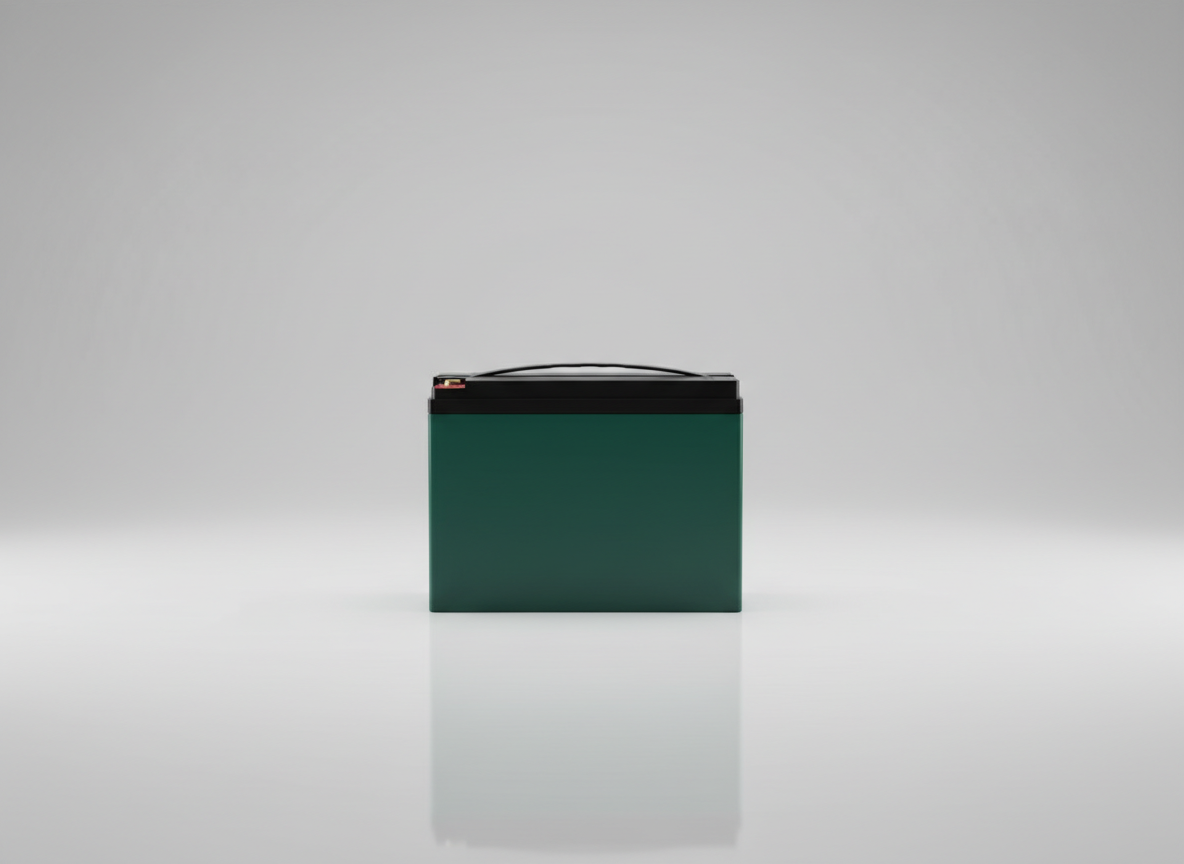

HT(6-EVF-52)

Wholesale and Partners Only

Nominal Voltage 12V
Nominal Capacity 52 Ah
Design life 5 years
Terminal M6
Approx. Weight Approx. 14.3kg (31.6lbs)
Container Material ABS
INQUIRY NOW

CRAFTSMANSHIP 01

MULTI-LAYER ELECTROCHEMICAL REDUNDANCY

Meticulously engineered internal geometry designed to maximize surface area for high-rate discharge. Capable of consistent performance across a wide temperature spectrum from -20°C to 50°C with minimal energy loss.

CRAFTSMANSHIP 02

PEAK CYCLE EFFICIENCY & THERMAL MANAGEMENT

Featuring a high-fidelity 400-600 cycle life at 100% DOD. The HT series integrates advanced lead-acid technology with industrial-grade M6 terminals for superior operational reliability under rigorous load conditions.

CRAFTSMANSHIP 03

VISIONARY LIFECYCLE & TELEMETRY PRECISION

Redefining long-term viability with up to 1600 high-fidelity cycles. The linear OCV-to-capacity correlation enables millisecond-precision energy monitoring, delivering a transparent and highly predictable user experience.
Configuration
Parameters Details
Nominal Voltage 12V
Nominal Capacity 52 Ah
Design life 5 years
Terminal M6
Approx. Weight Approx. 14.3kg (31.6lbs)
Container Material ABS
10Hour Rate to 10.5V 55.0Ah (5.50A)
Discharge Temp -20 ~ 50℃ (-4 ~ 122℉)
Charge Temp -20 ~ 50℃ (-4 ~ 122℉)
Storage Temp -20 ~ 50℃ (-4 ~ 122℉)
Float Use @25℃ 13.7V – 13.9V
Cycle Use @25℃ 14.7V – 14.9V
Max charge current 10.4A
Length 224 mm
Width 135 mm
Height 178 mm
Cycle Life @100%DOD 400 ~ 600 times
