HSK-HRAP-108H

Wholesale and Partners Only

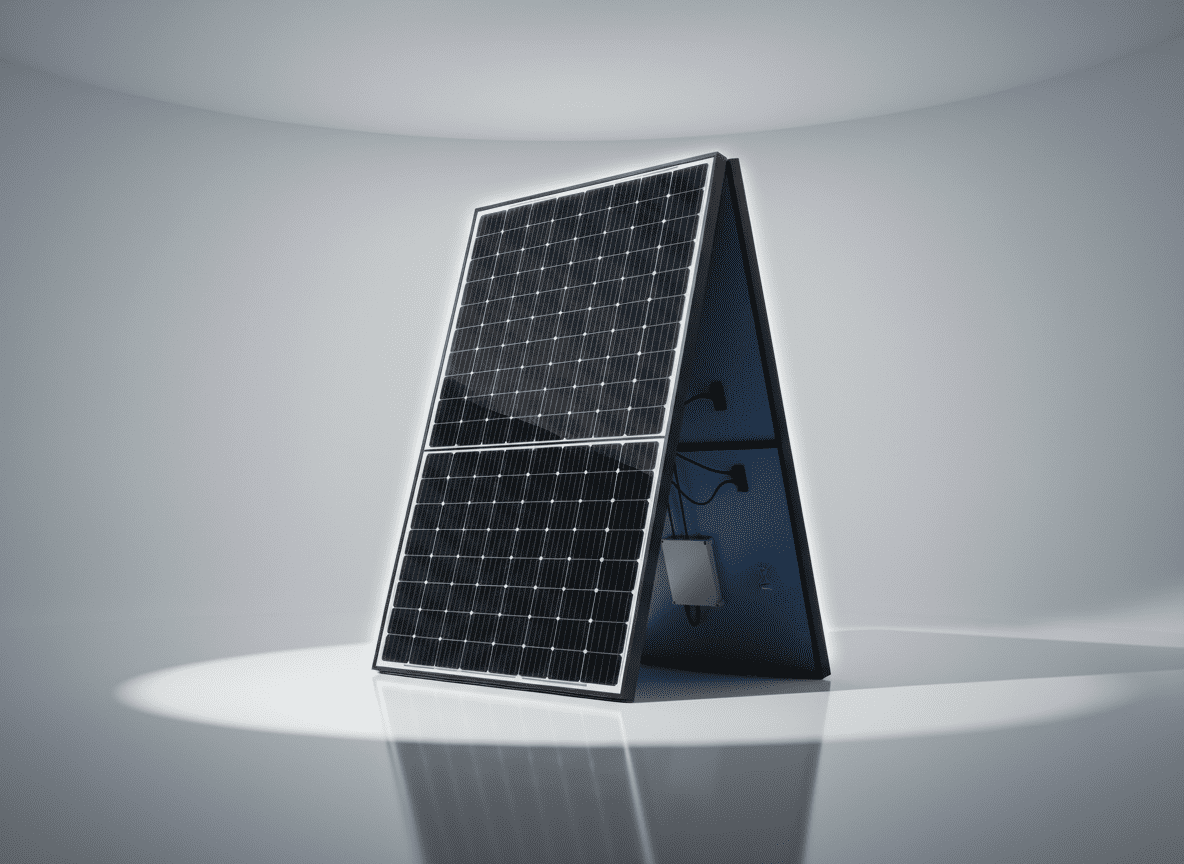

Module Type 108-cell Monocrystalline Half-cell Module
Maximum Rated Power (Pmax) – STC 420 W
Optimum Operating Voltage (Vmp) – STC 31.73 V
Optimum Operating Current (Imp) – STC 13.24 A
Open Circuit Voltage (Voc) – STC 37.75 V
Short Circuit Current (Isc) – STC 14.01 A
INQUIRY NOW

CRAFTSMANSHIP 01

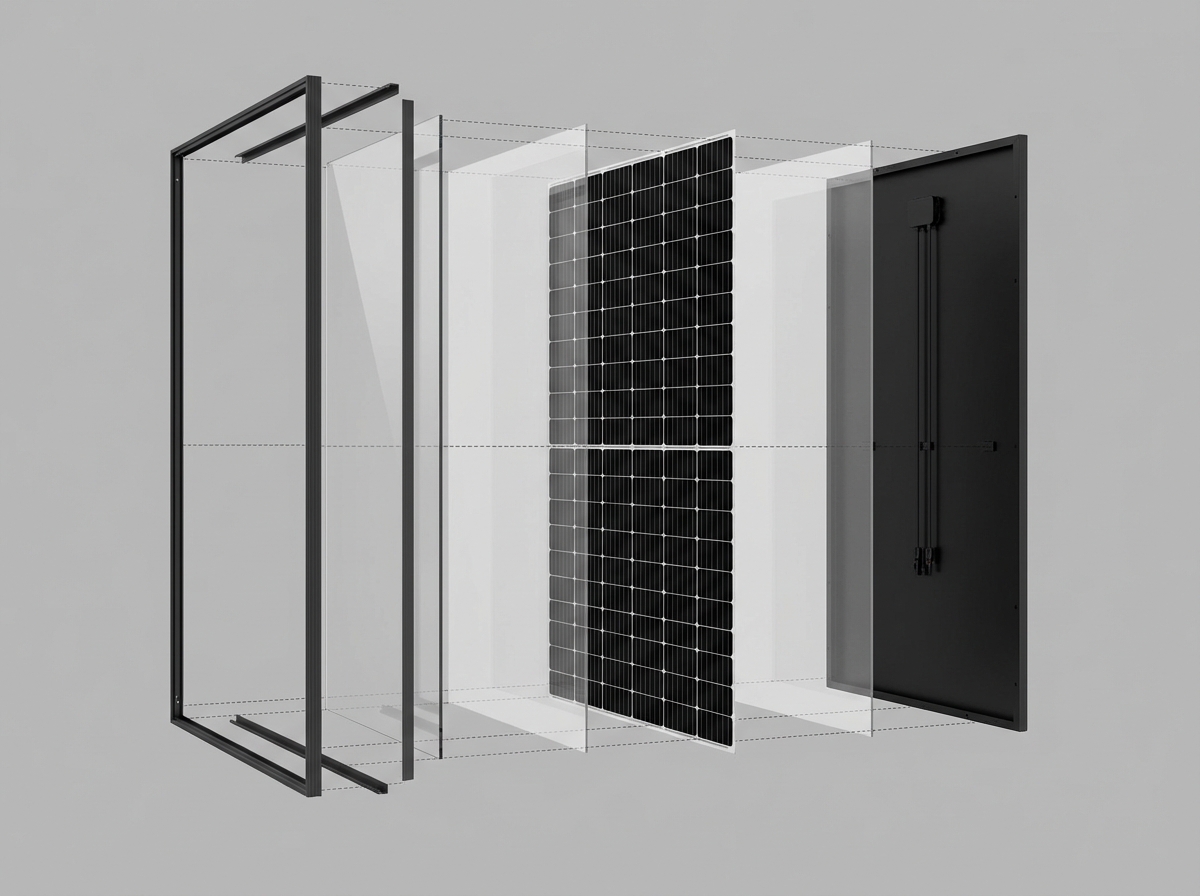

HIGH-EFFICIENCY PHOTOVOLTAIC MATRIX

A 108-cell monocrystalline half-cell architecture delivering a high-fidelity 420W output. Engineered with a precision 21.48% module efficiency and M10 wafer technology for peak energy conversion.

CRAFTSMANSHIP 02

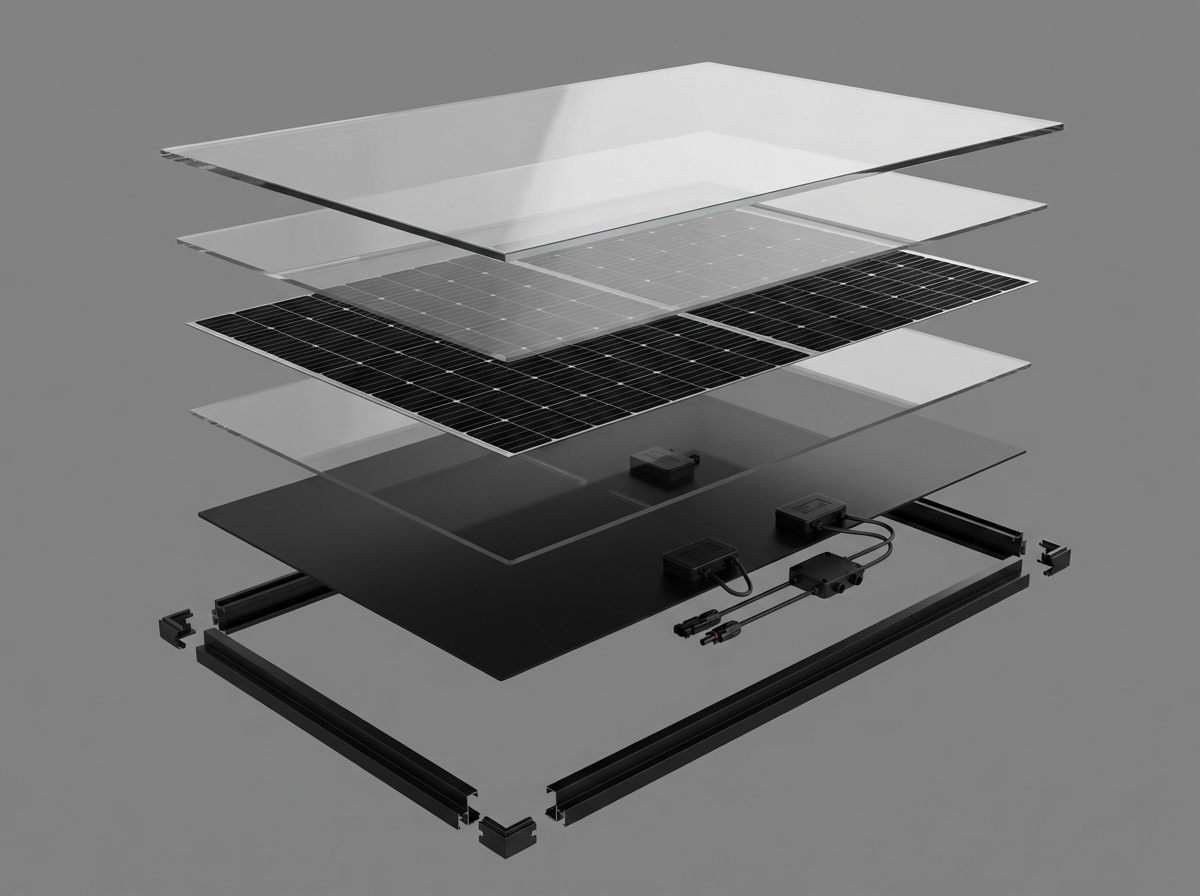

REINFORCED STRUCTURAL INTEGRITY

Features 3.2mm high-transmission AR-coated glass paired with an anodized aluminum alloy frame. Designed to withstand extreme mechanical loads up to 5400Pa, ensuring total reliability in rigorous climates.

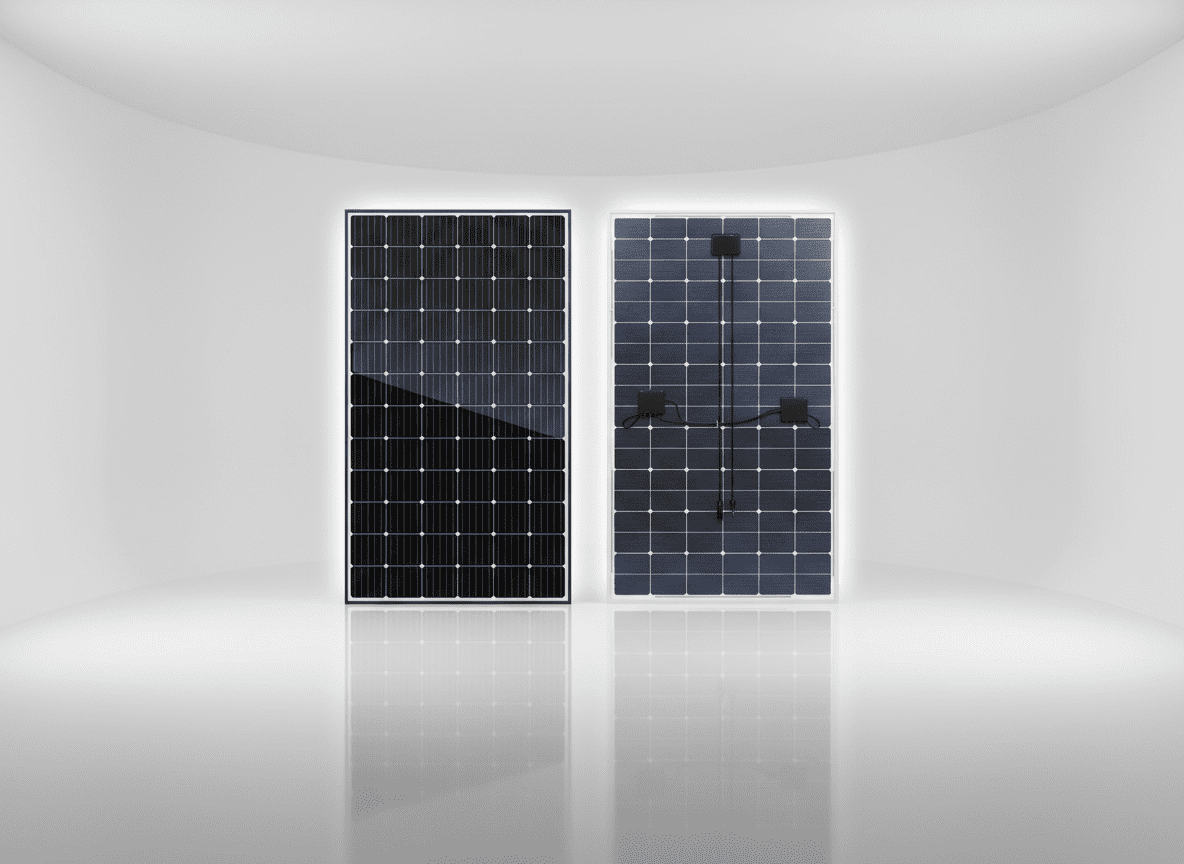

CRAFTSMANSHIP 03

REINFORCED STRUCTURAL CORE

Featuring an anodized aluminum alloy frame and an IP68-rated junction box. Built to withstand environmental rigor while maintaining peak electrical efficiency through meticulous engineering.
Configuration
Parameters Details
Module Type 108-cell Monocrystalline Half-cell Module
Maximum Rated Power (Pmax) – STC 420 W
Optimum Operating Voltage (Vmp) – STC 31.73 V
Optimum Operating Current (Imp) – STC 13.24 A
Open Circuit Voltage (Voc) – STC 37.75 V
Short Circuit Current (Isc) – STC 14.01 A
Module Efficiency 21.48%
Maximum Rated Power (Pmax) – NMOT 313.9 W
Optimum Operating Voltage (Vmp) – NMOT 29.47 V
Optimum Operating Current (Imp) – NMOT 10.65 A
Open Circuit Voltage (Voc) – NMOT 35.49 V
Short Circuit Current (Isc) – NMOT 11.32 A
Power Tolerance 0 ~ +3 W
Cell Type Monocrystalline
Cell Dimensions 182 × 182 mm
Cell Arrangement 108 (6 × 18)
Module Dimensions 1724 × 1134 × 30 mm
Weight 21.5 kg (±3%)
Front Glass 3.2mm High-transmission, AR-coated tempered glass
Frame Anodized aluminum alloy
Junction Box IP68 Protection rating
Cable 4.0 mm² / Length 300mm (Customizable)
Connector Type PV-XT101.1
Mechanical Load Front 5400Pa / Rear 2400Pa
Max System Voltage 1500 VDC
Max Series Fuse Rating 25 A
Operating Temperature -40°C ~ +85°C
Nominal Operating Cell Temperature (NOCT) 45 ± 2°C
Pmax Temperature Coefficient -0.34% / °C
Voc Temperature Coefficient -0.28% / °C
Isc Temperature Coefficient +0.05% / °C
Warranty 12-year Material and Workmanship Warranty / 25-year Linear Power Warranty
