GED-HPM1.5KW

Wholesale and Partners Only

Rated Power 1500 W
Rated Voltage 48V / 60V
Rated Current – 48V 40 A
Rated Current – 60V 30 A
Max Phase Current – 48V 120 A
Max Phase Current – 60V 100 A
INQUIRY NOW

CRAFTSMANSHIP 01

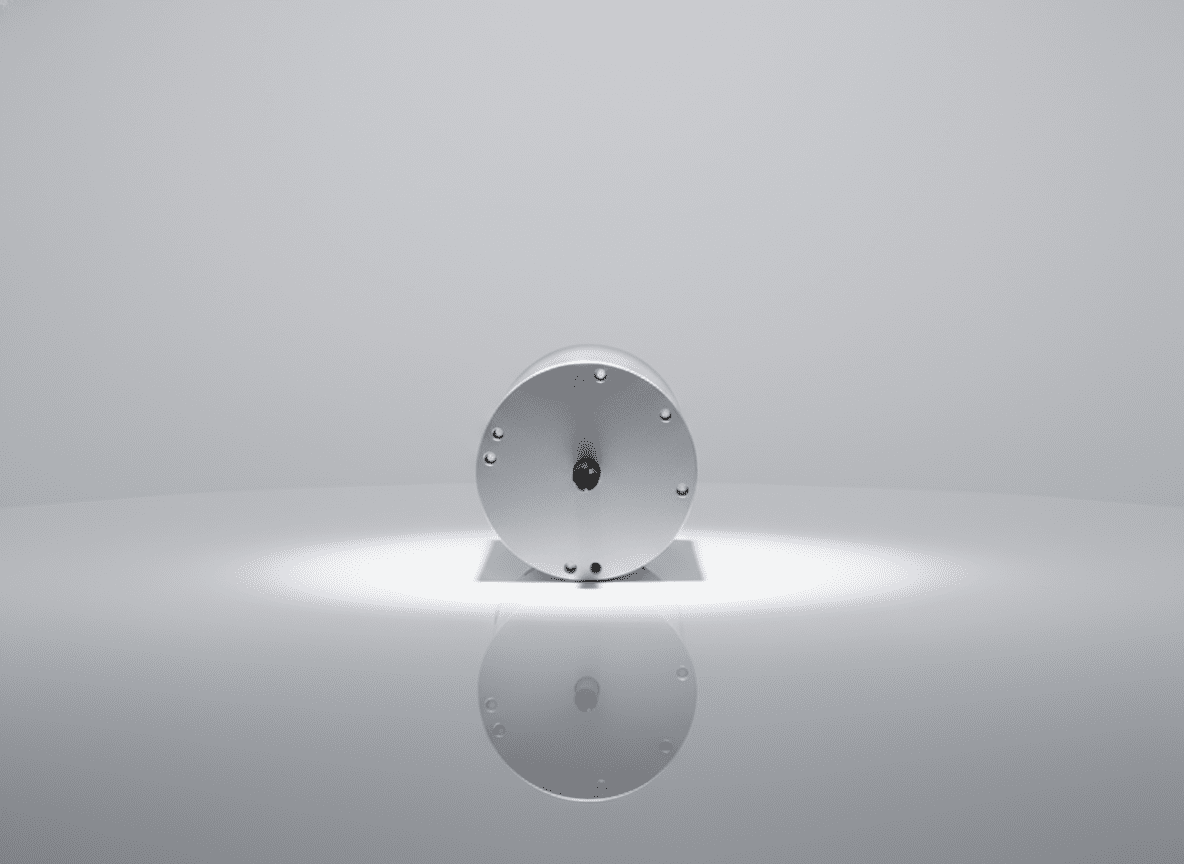

HIGH-DENSITY PROPULSION UNIT

A flagship 1500W brushless motor architecture engineered for peak energy conversion. Featuring a massive 15 N.m peak torque and 4000 rpm rated velocity to redefine high-performance urban mobility.

CRAFTSMANSHIP 02

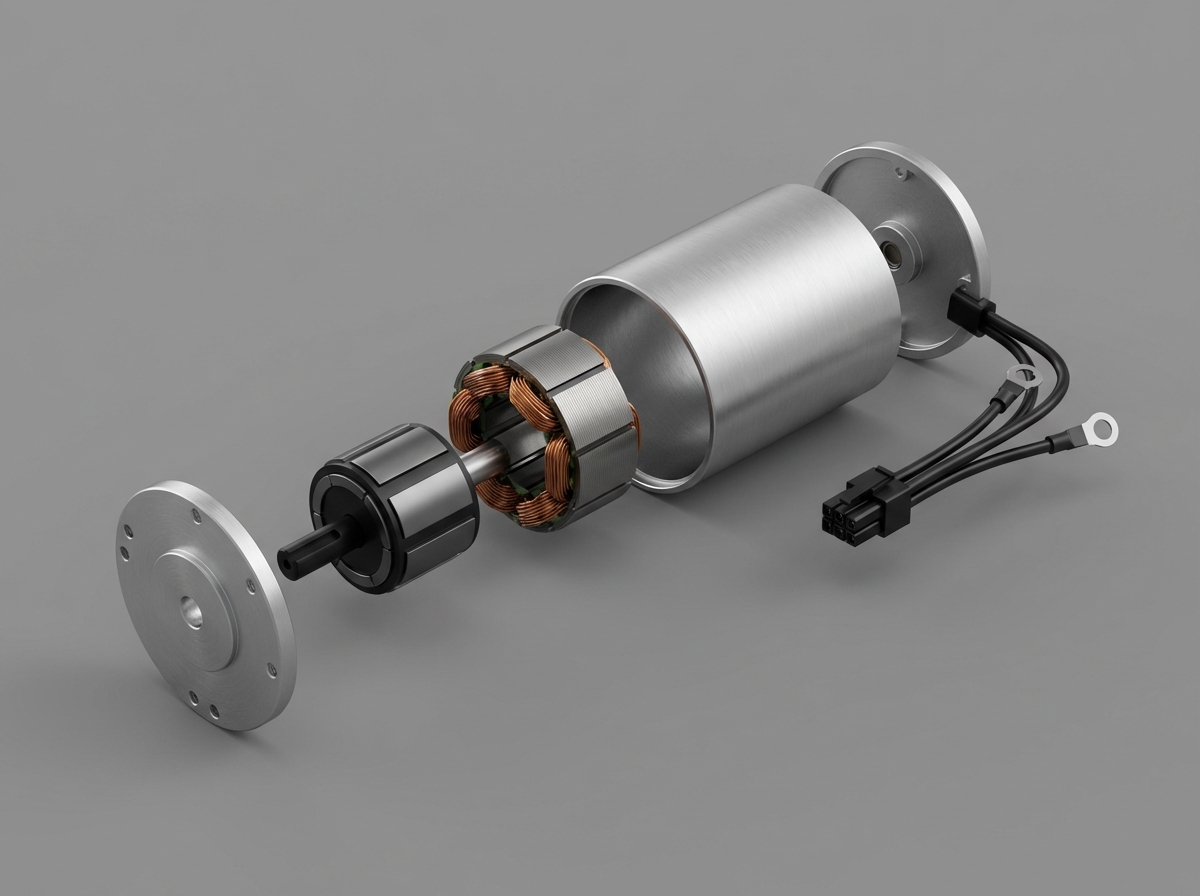

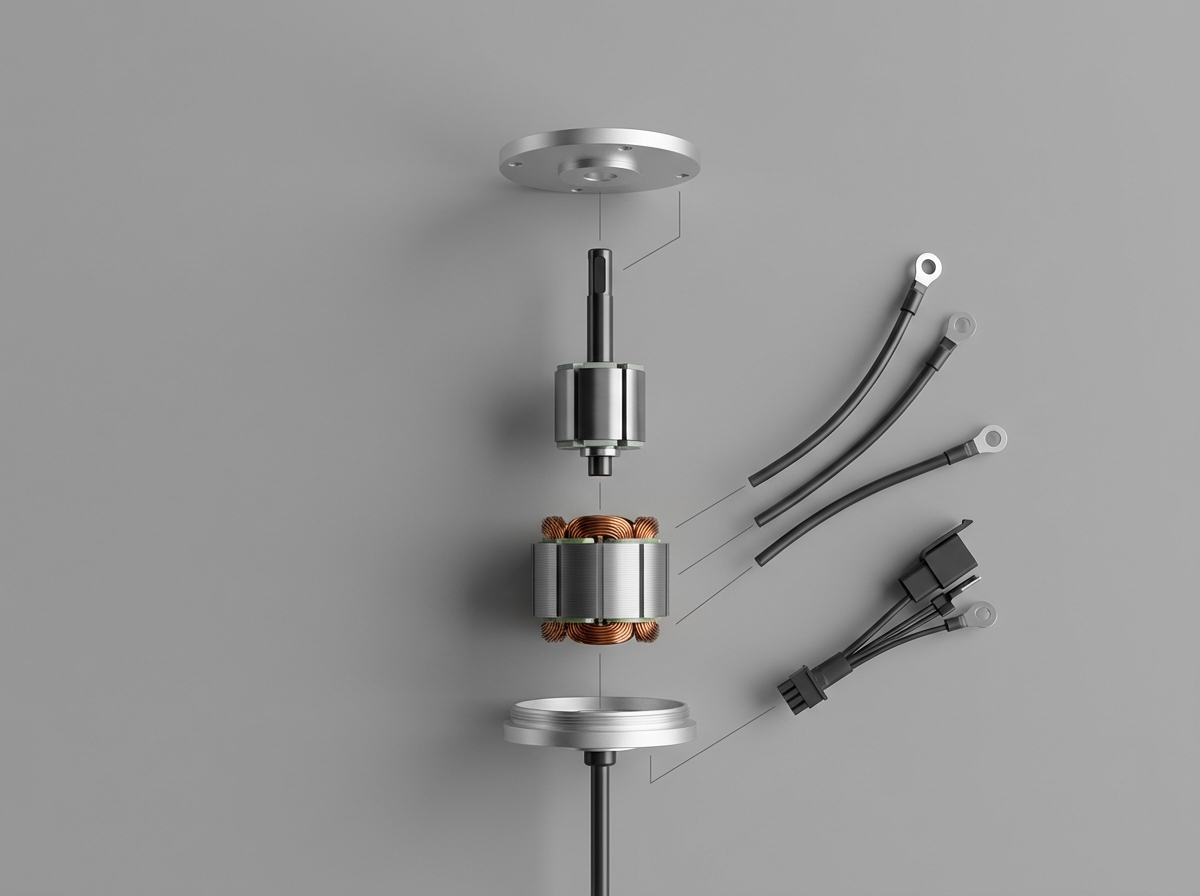

H-GRADE THERMAL ARCHITECTURE

Precision-calibrated 108mm radial magnetic field structure integrating H-grade insulation and IP54 protection. Engineered for total operational reliability across a broad -20°C to 55°C thermal spectrum.

CRAFTSMANSHIP 03

DYNAMIC PERFORMANCE MATRIX

Optimized dual-voltage characteristic curves for 48V/60V systems. Delivering millisecond-precision torque control and superior energy efficiency across the entire 4000 rpm operational bandwidth.
Configuration
Parameters Details
Rated Power 1500 W
Rated Voltage 48V / 60V
Rated Current – 48V 40 A
Rated Current – 60V 30 A
Max Phase Current – 48V 120 A
Max Phase Current – 60V 100 A
Max Current Duration 15 s
Rated Speed 4000 rpm
Rated Torque 3.5 N.m
Peak Torque 15 N.m
Interphase Resistance – 48V 29 mΩ
Interphase Resistance – 60V 38 mΩ
Inductance – 48V 87 μH
Inductance – 60V 140 μH
Hall Electrical Angle 120°
Phase Angle Offset -120
Number of Pole-Pairs 5
Insulation Grade H
Protection Levels IP54
Magnetic Field Type Radial
Cooling Type Natural Cooling
Diameter 108 mm
Height 129 mm
Shaft Diameter 12 mm
Net Weight 4 kg
Working Temperature -20°C ~ 55°C
